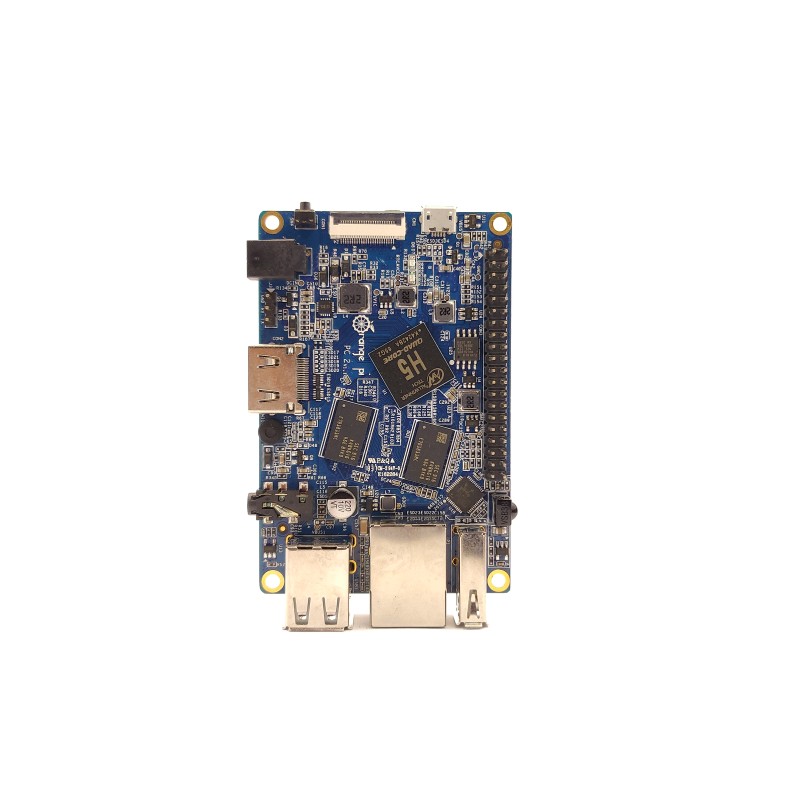

It’s an open-source single-board computer. It can run Android 5.1, Ubuntu, Debian Image. It uses the AllWinner H5 SoC, and has 1GB DDR3 SDRAM
Manufacturer | OrangePi |
---|---|
Dimensions | 85mm x 55mm |
Release Date | November 2016 |
Website | Orange Pi PC 2 Product Page |
Specifications | |
SoC | Allwinner H5 @ 1.3Ghz |
DRAM | 1GiB DDR3 |
Power | DC 5V @ 2A (4.0mm/1.7mm barrel plug - centre positive) or via GPIO header pins |
Features | |
Video | HDMI 1.4 (HDCP, CEC), CVBS |
Audio | 3.5 mm Jack, HDMI, Microphone |
Network | 10/100/1000Mbps Ethernet (Realtek RTL8211E) |
Storage | µSD, 16Mbit NOR Flash on board (MX25L1606E) |
USB | 3 USB 2.0 Host, 1 USB 2.0 OTG |
